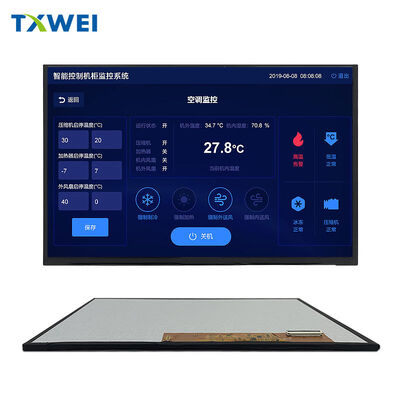

10.1inch LCD screen 1280*800 industrial control medical equipment 900 brightness LVDS interface display screen

prodotti

Modulo a 7 pollici dell'affissione a cristalli liquidi

10.1inch LCD screen 1280*800 industrial control medical equipment 900 brightness LVDS interface display screen

MOQ:	1
prezzo:	Negoziabile
Periodo di consegna:	7-16 giorni
Metodo di pagamento:	L/C,D/A,D/P,T/T
Capacità di approvvigionamento:	10000 pezzi

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine

SHENZHEN

Marca

TXWEI

Certificazione

CE FCC ROHS

Numero di modello

TXW100090S0

Numero di pixel:

1280*800

Direzione di visualizzazione:

Visualizza interfaccia:

LVD a 8 bit

Luminosità:

900nits

Zona attiva:

216,96*135,6(millimetro)

Dimensione del contorno:

229,1*148,9*4,3(mm)

Temperatura operativa:

-30+80°C

Temperatura di conservazione:

-30+80°C

Numero di pin:

40PIN

Evidenziare:

10.1 inch industrial LCD screen

medical equipment display screen

LVDS interface TFT display

Descrizione del prodotto

TXW100090S0 10.1 Inch IPS LCD Display | 1280×800 | 900 Nits | LVDS 40PIN | Industrial Grade -30℃~+80℃

Product Description

TXW100090S0 Industrial Grade 10.1" IPS LCD Display Module

The TXW100090S0 is a high-brightness industrial LCD display designed for demanding environments. Featuring IPS technology with 900 nits brightness and wide temperature operation, this 10.1-inch display delivers exceptional visibility and reliability for automotive, agricultural, medical, and industrial applications.

Key Features:

10.1-inch IPS Panel – 1280×800 resolution with full viewing angle for clear visibility from any direction
Ultra-High Brightness – 900 nits ensures excellent outdoor readability and sunlight visibility
Industrial Temperature Range – Operating temperature -30℃ to +80℃, storage -30℃ to +80℃
LVDS Interface – 8-bit 40-pin LVDS for stable high-speed signal transmission
Compact Design – Active area 216.96×135.6mm, outline dimensions 229.1×148.9×4.3mm
EK79202 Driver IC – Proven performance with reliable display control

Ideal Applications:

Agricultural machinery central control displays
Truck navigation and dashboard instruments
Industrial equipment HMI panels
Medical instrument displays
Industrial all-in-one PC display

Parameter		Value
Model		TXW100090S0
Size		10.1 inch
Resolution		1280 × 800 pixels
Viewing Angle		IPS (Full viewing angle)
Brightness		900 cd/m² (nits)
Interface		LVDS 8-bit 40-pin
Driver IC		EK79202
Active Area		216.96 × 135.6 mm
Outline Dimensions		229.1 × 148.9 × 4.3 mm
Operating Temperature		-30℃ ~ +80℃
Storage Temperature		-30℃ ~ +80℃

Product Highlights (Bullet Points)

✅ Sunlight Readable – 900 nits high brightness for outdoor and high-ambient-light environments

✅ All-Angle Visibility – IPS technology ensures consistent colors and contrast at any viewing angle

✅ Extreme Temperature Operation – Reliable performance from -30℃ to +80℃ industrial range

✅ Versatile Integration – Standard LVDS 40-pin interface compatible with major industrial controllers

✅ Rugged Industrial Design – Built for agricultural vehicles, trucks, medical devices, and factory automation

TXW100090S0, 10.1 inch LCD display, IPS display module, 1280x800 LCD, high brightness display, 900 nits LCD, industrial LCD panel, LVDS display, automotive display, agricultural machinery display, medical LCD, wide temperature LCD, EK79202 driver, sunlight readable display
